SSR Solid State Relay Heat Sink
Solid state relay heat sink is designed for single phase SSR and three phase solid state relay. Aluminum heat sink radiator is suitable for one or three pieces of industrial-grade single phase solid state relay or one piece of three phase solid state relay. ATO offers different models heat sink for you.
Specification
| Model | Dimension (mm) | Application Range |
| ATO-L-150 | 150 × 125 × 135 |
1. Applied for three industrial single phase solid state relays with actual load current (three phase amount) less than 220A 2. Applied for a three-phase solid state relay with actual load current (three phase amount) less than 210A 3. Applied for one industrial single phase solid state relay with actual load current less than 220A |
| ATO-L-200 | 200 × 125 × 135 |
1. Applied for three industrial single phase solid state relays with actual load current (three phase amount) less than 300A 2. Applied for one industrial single phase solid state relay with actual load current less than 300A |
| ATO-L-250 | 250 × 125 × 135 |
1. Applied for three industrial single phase solid state relays with actual load current (three phase amount) less than 350A 2. Applied for one industrial single phase solid state relay with actual load current less than 350A |
| ATO-L-300 | 300 × 125 × 135 |
1. Applied for three industrial single phase solid state relays with actual load current (three phase amount) less than 400A 2. Applied for one industrial single phase solid state relay with actual load current less than 400A |
| ATO-L-400 | 400 × 125 × 135 |
1. Applied for three industrial single phase solid state relays with actual load current (three phase amount) less than 500A 2. Applied for one industrial single phase solid state relay with actual load current less than 500A |

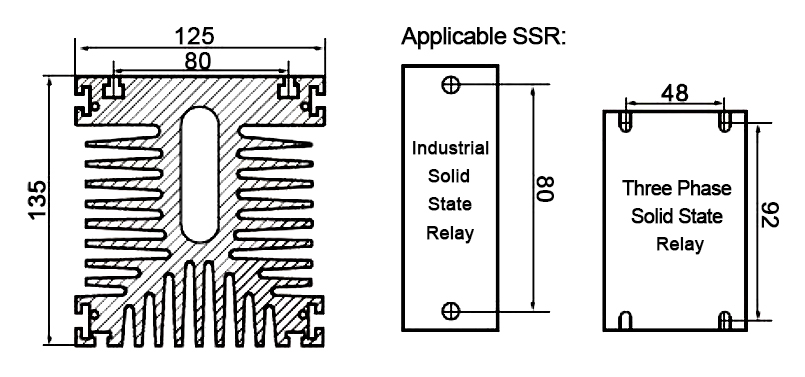

Dimension: (Unit: mm)
Tips: Why Put Heat Sink on Solid State Relay?
Solid state relay and thyristor module: why do you want to install the radiator, because the two are all using thyristor as main over-current components, thyristor power device, when the use of certain conduction voltage drop on resistance, thus to generate heat, not distribute in time to come in, SCR will hasten to damage, unable to recover the results. Therefore, the load on a certain current should be equipped with radiator plates, and if necessary, air cooling, water cooling, etc. The heat generated by solid state relay or module is mainly related to the practical current of the driven load, but has little relationship with its own current level.
